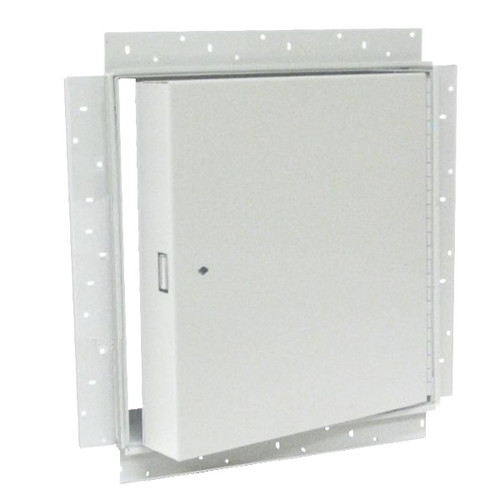

22in x 30in, FDP - Fire-Rated & Insulated Concealed Frame Access Panel For Plaster

See more by J&L Industries

Call 800-513-5976 for pricing
22in x 30in, FDPW-Series, Insulated Fire Rated Access Door for Walls and Ceilings w/Interior & White powder coat primer
Hover Image to Zoom

22in x 30in, FDP - Fire-Rated & Insulated Concealed Frame Access Panel For Plaster

See more by J&L Industries

Call 800-513-5976 for pricing
SKU:
JL-FDP2230
Availability:
Call 800-516-4036 For Pricing
Weight:
32.00 LBS
Width:
22.00 (in)
Height:
30.00 (in)
Depth:
6.00 (in)
See Full Details

Lead Time: Dependent on time of order. If in-stock, typically ships in 2-3 business days. If not in-stock, lead time will be approximately 2-3 weeks until shipment.

Add to Wishlist

Description

Product Description
FDP - Fire-Rated & Insulated Concealed Frame Access Panel For Plaster

The recessed frame of this access panel for walls & ceilings is concealed by application of plaster to the metal flange, and includes a 3/4in deep plastering stop. Door can be painted to match the surrounding surface for an unobtrusive look.

22in x 30in, FDP - Fire-Rated & Insulated Concealed Frame Access Panel For Plaster
(558.8mm) x (762mm)

Product Features

  • Frame: 16 gauge with recessed flange for plastering. 1 3/8in wide galvanized flange has 3/4in Deep Plastering Stop. Model FDP includes additional expanded metal lath.
  • Door: 2in thick, insulated 20 gauge steel with continuous hinge.
  • Finish: White powder coat paint.
  • Latch: Universal turn ring and key lock (U).

Warnock Hersey LogoUL Logo

Fire-Rating of FDW & FDP:

  • Fire-Rating: Wall Installation: 1-1/2 hour UL "B" label in a 2 hour fire barrier. File # R13067-1. Maximum size 48in x 48in.
  • Ceiling Installation: Warnock Hersey listed for ceiling installations with 3 hour non-combustible rating or 1 hour combustible rating. File # WHI-495-PSH-0163. Maximum size 24in x 36in.
  • CSFM: This product has been approved by the California State Fire Marshall (CSFM) pursuant to Section 13144.1 of the California Health and Safety Code. See CSFM Listing No 3330-1223

Product Resources

Other Features

  • Description

    Product Description
    FDP - Fire-Rated & Insulated Concealed Frame Access Panel For Plaster

    The recessed frame of this access panel for walls & ceilings is concealed by application of plaster to the metal flange, and includes a 3/4in deep plastering stop. Door can be painted to match the surrounding surface for an unobtrusive look.

    22in x 30in, FDP - Fire-Rated & Insulated Concealed Frame Access Panel For Plaster
    (558.8mm) x (762mm)

    Product Features

    • Frame: 16 gauge with recessed flange for plastering. 1 3/8in wide galvanized flange has 3/4in Deep Plastering Stop. Model FDP includes additional expanded metal lath.
    • Door: 2in thick, insulated 20 gauge steel with continuous hinge.
    • Finish: White powder coat paint.
    • Latch: Universal turn ring and key lock (U).

    Warnock Hersey LogoUL Logo

    Fire-Rating of FDW & FDP:

    • Fire-Rating: Wall Installation: 1-1/2 hour UL "B" label in a 2 hour fire barrier. File # R13067-1. Maximum size 48in x 48in.
    • Ceiling Installation: Warnock Hersey listed for ceiling installations with 3 hour non-combustible rating or 1 hour combustible rating. File # WHI-495-PSH-0163. Maximum size 24in x 36in.
    • CSFM: This product has been approved by the California State Fire Marshall (CSFM) pursuant to Section 13144.1 of the California Health and Safety Code. See CSFM Listing No 3330-1223

    Product Resources

    Other Features
