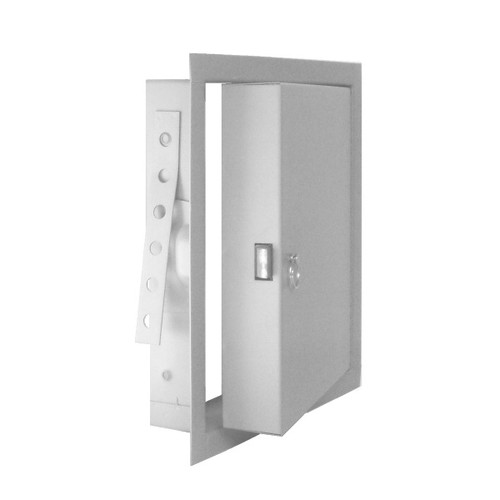

22in x 36in, FDG - Fire-Rated & Insulated Concealed Frame Access Panel with Universal Turn Ring and Key Lock

See more by J&L Industries

$381.00
22in x 36in, FDG - Fire-Rated & Insulated Concealed Frame Access Panel With Wallboard Bead
Hover Image to Zoom

22in x 36in, FDG - Fire-Rated & Insulated Concealed Frame Access Panel with Universal Turn Ring and Key Lock

See more by J&L Industries

$381.00
SKU:
JL-FDG2236
Weight:
37.00 LBS
Width:
22.00 (in)
Height:
36.00 (in)
Depth:
2.00 (in)
Shipping:
Calculated at Checkout
See Full Details

Lead Time: Dependent on time of order. If in-stock, typically ships in 2-3 business days. If not in-stock, lead time will be approximately 2-3 weeks until shipment.

Adding to cart… The item has been added
Add to Wishlist

Description

Product Description
FDG - Fire-Rated & Insulated Concealed Frame Access Panel with Universal Turn Ring and Key Lock

The paintable fire-rated FDW for walls or ceilings provides a hidden frame with wallboard bead that can be covered by taping compound to achieve a smooth wall appearance up to the frame of the door.

22in x 36in, FDG - Fire-Rated & Insulated Concealed Frame Access Panel with Universal Turn Ring and Key Lock
(558.8mm) x (914.4mm)

Product Features

  • Frame: 16 gauge with 1in drywall bead that can be taped for a smooth appearance.
  • Door: 2in thick, insulated 20 gauge steel with continuous hinge.
  • Finish: White powder coat paint.
  • Latch: Universal turn ring and key lock (U).

Warnock Hersey LogoUL Logo

Fire-Rating of FDW & FDP:

  • Wall Installation: 1-1/2 hour UL "B" label in a 2 hour fire barrier. File # R13067-1. Maximum size 48in x 48in
  • Ceiling Installation: Warnock Hersey listed for ceiling installations with 3 hour non-combustible rating or 1 hour combustible rating. File # WHI-495-PSH-0163. Maximum size 24in x 36in.
  • CSFM: This product has been approved by the California State Fire Marshall (CSFM) pursuant to Section 13144.1 of the California Health and Safety Code. See CSFM Listing No 3330-1223

Product Resources

Other Features

  • Description

    Product Description
    FDG - Fire-Rated & Insulated Concealed Frame Access Panel with Universal Turn Ring and Key Lock

    The paintable fire-rated FDW for walls or ceilings provides a hidden frame with wallboard bead that can be covered by taping compound to achieve a smooth wall appearance up to the frame of the door.

    22in x 36in, FDG - Fire-Rated & Insulated Concealed Frame Access Panel with Universal Turn Ring and Key Lock
    (558.8mm) x (914.4mm)

    Product Features

    • Frame: 16 gauge with 1in drywall bead that can be taped for a smooth appearance.
    • Door: 2in thick, insulated 20 gauge steel with continuous hinge.
    • Finish: White powder coat paint.
    • Latch: Universal turn ring and key lock (U).

    Warnock Hersey LogoUL Logo

    Fire-Rating of FDW & FDP:

    • Wall Installation: 1-1/2 hour UL "B" label in a 2 hour fire barrier. File # R13067-1. Maximum size 48in x 48in
    • Ceiling Installation: Warnock Hersey listed for ceiling installations with 3 hour non-combustible rating or 1 hour combustible rating. File # WHI-495-PSH-0163. Maximum size 24in x 36in.
    • CSFM: This product has been approved by the California State Fire Marshall (CSFM) pursuant to Section 13144.1 of the California Health and Safety Code. See CSFM Listing No 3330-1223

    Product Resources

    Other Features
