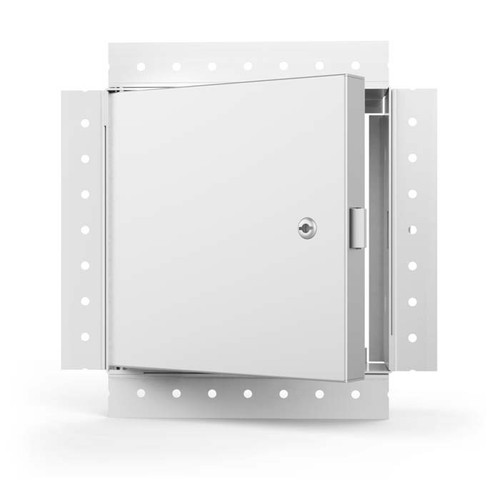

FB-5060-DW - 24in x 36in, Fire Rated UnInsulated Access Door for Drywall

See more by Acudor

$313.90
FB-5060-DW - 24in x 36in, Fire Rated UnInsulated Access Door for Drywall
Hover Image to Zoom

FB-5060-DW - 24in x 36in, Fire Rated UnInsulated Access Door for Drywall

See more by Acudor

$313.90
SKU:
AD-FB-5060-DW-2436
Availability:
Ships in 1-2 Days
Weight:
0.20 LBS
Width:
24.00 (in)
Height:
36.00 (in)
Depth:
2.00 (in)
Shipping:
Calculated at Checkout
See Full Details

Lead Time: Dependent on time of order. If in-stock, typically ships in 2-3 business days. If not in-stock, lead time will be approximately 2-3 weeks until shipment.

Adding to cart… The item has been added
Add to Wishlist

Description

AD-FB-5060-DW - Title PicAD-FB-5060-DW - Title

Product Description
FB-5060-DW Fire Rated UnInsulated Access Door for Drywall

For drywall walls applications. Designed to maintain continuity in a 2 hour fire rated wall, when temperature rise is not a factor
24in x 36in, Fire Rated UnInsulated Access Door for Drywall For Drywall
(609.6mm) x (914.4mm)

Product Features

  • Concealed hinge
  • Self-closing
  • Self-Latching
  • Drywall taping bead
  • Inside latch release
  • Available with a removable door panel

FB-5060-DW Access Door Specifications:

  • Material: Steel or Stainless Steel
  • Mounting Frame: 16 gauge. Flush to frame with reinforced edges, drywall taping bead flange
  • Hinge: Concealed
  • Fire Rating (Walls): UL, 1-1/2 hour "B" label. ULC, 2 hour "B" label. (optional) Max size 36 x 48
  • Standard Latch: Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks.
  • Finish: stage iron phosphate preparation with prime coat of White alkyd baked-on enamel Stainless Steel: Type 304 - #4 satin polish optional

Technical Documentation:



FB-5060-DW - Size Chart

FB-5060-DW - Schematic

  • Description

    AD-FB-5060-DW - Title PicAD-FB-5060-DW - Title

    Product Description
    FB-5060-DW Fire Rated UnInsulated Access Door for Drywall

    For drywall walls applications. Designed to maintain continuity in a 2 hour fire rated wall, when temperature rise is not a factor
    24in x 36in, Fire Rated UnInsulated Access Door for Drywall For Drywall
    (609.6mm) x (914.4mm)

    Product Features

    • Concealed hinge
    • Self-closing
    • Self-Latching
    • Drywall taping bead
    • Inside latch release
    • Available with a removable door panel

    FB-5060-DW Access Door Specifications:

    • Material: Steel or Stainless Steel
    • Mounting Frame: 16 gauge. Flush to frame with reinforced edges, drywall taping bead flange
    • Hinge: Concealed
    • Fire Rating (Walls): UL, 1-1/2 hour "B" label. ULC, 2 hour "B" label. (optional) Max size 36 x 48
    • Standard Latch: Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks.
    • Finish: stage iron phosphate preparation with prime coat of White alkyd baked-on enamel Stainless Steel: Type 304 - #4 satin polish optional

    Technical Documentation:



    FB-5060-DW - Size Chart

    FB-5060-DW - Schematic
