Product Description
FB-5060-TD Fire Rated UnInsulated Access Door, Recessed for Tile Walls
Designed for use in tiled walls Used whenever it is necessary to provide access in fire rated walls, when temperature rise is not a factor
12in x 12in, Fire Rated UnInsulated Access Door, Recessed for Tile Walls For Drywall
(304.8mm) x (304.8mm)
FB-5060-TD Product Features
- Recessed, and is lined with self-furring lath
- Designed to maintain continuity in a 2-hour fire barrier wall
- Self closing
- Self latching
- Inside latch release
- Designed to maintain continuity in a 2-hour fire barrier wall

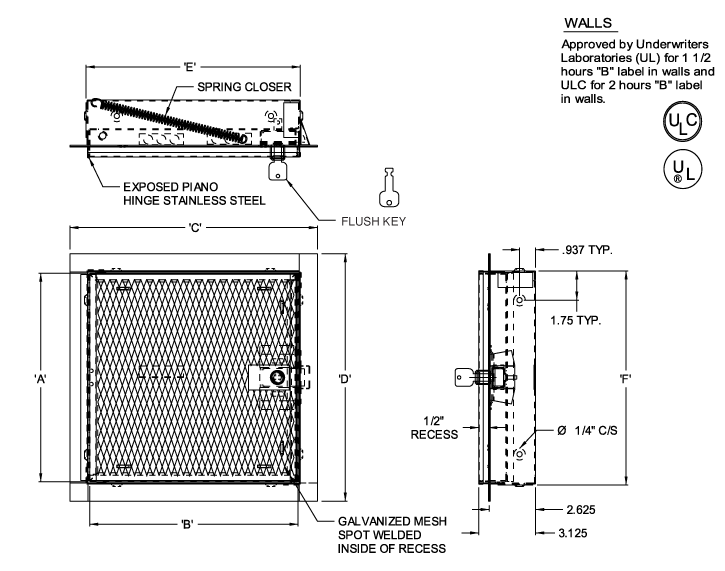

FB-5060-TD Access Door Specifications:
- Material: Steel
- Mounting Frame: 16 gauge steel
- Hinge: Continuous exposed piano hinge
- Fire Rating (Walls): UL, 1-1/2 hour "B" label. ULC, 2 hour "B" label. (optional) Max size 36 x 48
- Standard Latch: Universal self-latching bolt, operated by a flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks.
- Finish: stage iron phosphate preparation with prime coat of White alkyd baked-on enamel Stainless Steel: Type 304 - #4 satin polish optional
