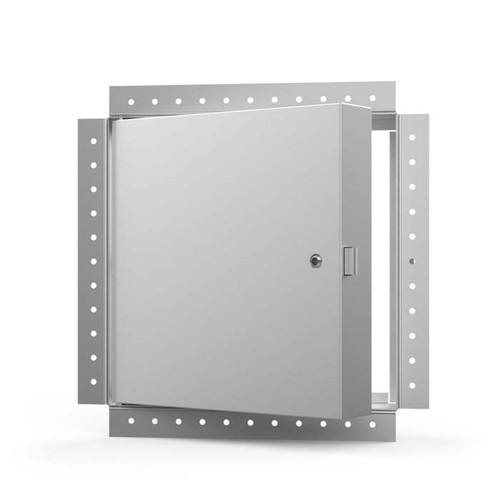

FW-5050-DW - 24in x 24in, Fire Rated Insulated Access Door, for Drywall Walls and Ceilings

See more by Acudor

$304.39
FW-5050-DW - 24in x 24in, Fire Rated Insulated Access Door, for Drywall Walls and Ceilings
Hover Image to Zoom

FW-5050-DW - 24in x 24in, Fire Rated Insulated Access Door, for Drywall Walls and Ceilings

See more by Acudor

$304.39
SKU:
AD-FW-5050-DW-2424
Availability:
Ships in 1-2 Days
Weight:
0.20 LBS
Width:
24.00 (in)
Height:
24.00 (in)
Depth:
2.00 (in)
Shipping:
Calculated at Checkout
See Full Details

Lead Time: Dependent on time of order. If in-stock, typically ships in 2-3 business days. If not in-stock, lead time will be approximately 2-3 weeks until shipment.

Adding to cart… The item has been added
Add to Wishlist

Description

AD-FW-5050-DW - Title PicAD-FW-5050-DW - Title

Product Description
FW-5050-DW Fire Rated Insulated Access Door, for Drywall Walls and Ceilings

For drywall, walls and ceilings with galvanized steel drywall taping bead flange. For when temperature rise or heat transmission is a factor.

24in x 24in, Fire Rated Insulated Access Door, for Drywall Walls and Ceilings For Drywall
(609.6mm) x (609.6mm)

Product Features

    • Insulated door panel
    • Concealed hinge
    • Self-Latching
    • Inside latch release
    • Drywall taping bead flange
    • Self-closing

Self-Latching

    • Material: Steel or Stainless Steel
    • Hinge: Concealed
    • Fire Rating: (Walls): UL, 1-1/2 hour "B" label. ULC, 2 hour "B" label. Max size: 36 x 48. (Ceilings): Warnock Hersey International 3 hour rated in a non-combustible ceiling. 1 hour rated in a combustible ceiling. Max size: 24 x 36
    • Standard Latch: Universal self-latching bolt, operated by either a knurled knob or flush key. Doors can be prepared for mortise cylinder locks (Master Keying).
    • Finish: Steel: 5 stage iron phosphate preparation with prime coat of white baked-on enamel. Stainless Steel: #4 satin polish


Technical Documentation:



FW-5050-DW - Size Chart

FW-5050-DW - Schematic

  • Description

    AD-FW-5050-DW - Title PicAD-FW-5050-DW - Title

    Product Description
    FW-5050-DW Fire Rated Insulated Access Door, for Drywall Walls and Ceilings

    For drywall, walls and ceilings with galvanized steel drywall taping bead flange. For when temperature rise or heat transmission is a factor.

    24in x 24in, Fire Rated Insulated Access Door, for Drywall Walls and Ceilings For Drywall
    (609.6mm) x (609.6mm)

    Product Features

      • Insulated door panel
      • Concealed hinge
      • Self-Latching
      • Inside latch release
      • Drywall taping bead flange
      • Self-closing

    Self-Latching

      • Material: Steel or Stainless Steel
      • Hinge: Concealed
      • Fire Rating: (Walls): UL, 1-1/2 hour "B" label. ULC, 2 hour "B" label. Max size: 36 x 48. (Ceilings): Warnock Hersey International 3 hour rated in a non-combustible ceiling. 1 hour rated in a combustible ceiling. Max size: 24 x 36
      • Standard Latch: Universal self-latching bolt, operated by either a knurled knob or flush key. Doors can be prepared for mortise cylinder locks (Master Keying).
      • Finish: Steel: 5 stage iron phosphate preparation with prime coat of white baked-on enamel. Stainless Steel: #4 satin polish


    Technical Documentation:



    FW-5050-DW - Size Chart

    FW-5050-DW - Schematic
